IA-ADM-01024

Designed for 30 krad (Si) radiation.

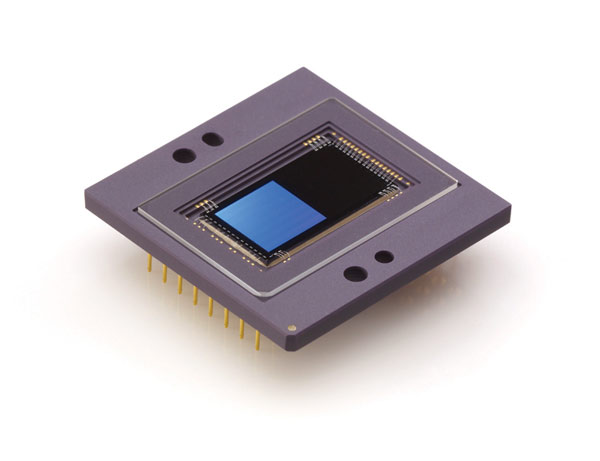

Teledyne DALSA’s IA-DM-01024 frame transfer image sensor has 8.5 μm x 8.5 μm pixels and 2 or 1 user selectable outputs. The sensor can operate in 2 x 2 binning mode for high frame rate applications. The IA-DM-01024 uses Teledyne DALSA's lateral antiblooming process to achieve good near IR quantum efficiency.

Specifications

Part Number IA-DM-01024
Sensor Type CCD
Resolution 1024 x 1024
Pixel Size 8.5 x 8.5 µm
Total Pixels 1.05 MP
Wavelength Category Visible (400-700 nm)
Near Infrared (700-1000 nm)

Relevant Applications

Earth Observation Imaging and Living Planet Sciences
Earth observation for resource, disaster and ocean monitoring and land mapping
