CCD374

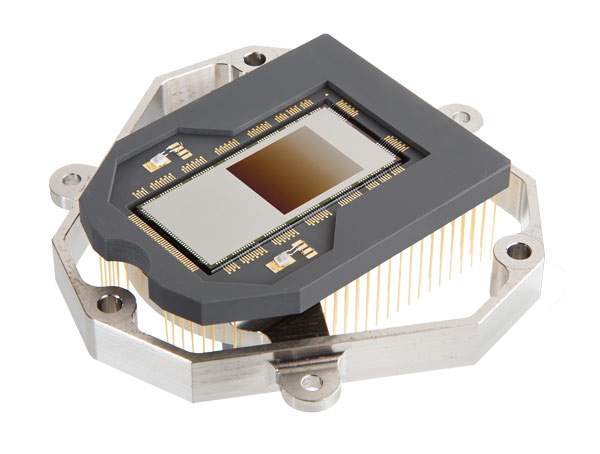

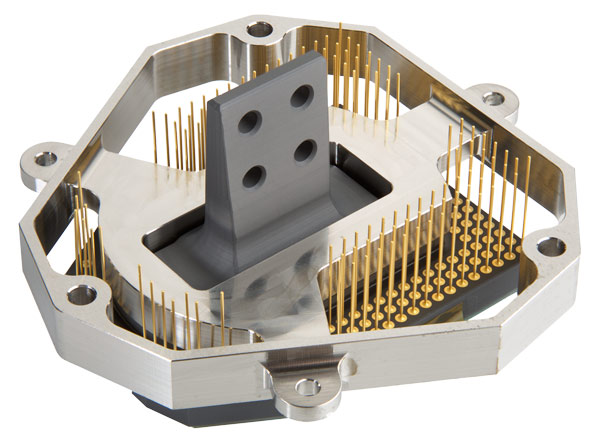

Teledyne e2v is supplying space qualified, custom CCD374 image senors optimised for ultraviolet and visible wavelengths and also CCD376 optimised for Near-infrared. They are both back illuminated for best Quantum Efficiency (QE) and Modulation Transfer Function (MTF) over the wavelength range of interest for this hyperspectral imaging system. The sensors are mounted in a custom designed package assembly which manages the electrical, thermal, mechanical and optical interfaces to the instrument.

Space Agency Mission Instrument
ESA Copernicus / EUMETSAT Meteosat Third Generation-Sounder (MTG-S) satellites Sentinel-5 UV1 and UV2VIS

Specifications

Part Number CCD374
Sensor Type CCD
Resolution 1404 x 1350
Pixel Size 20 x 30 µm
Package Custom
Total Pixels 1.9 MP
Wavelength Category Ultraviolet (193-400 nm)

Photo Gallery

Downloads

Whitepapers
Document Type
2016 Recent Sensors Design For EO
