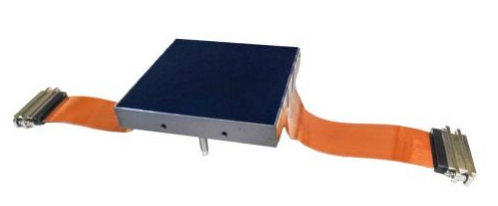

CCD290-99

The sensor has an image area having 9216 × 9232 pixels with registers at both top and bottom each with eight outputs for short read-out times. The pixel size is 10 µm square. The image area has two separately connected sections to allow full-frame or split full-frame read-out modes. Depending on the mode, the read-out can be through 8 or 16 of the output circuits. A fixed-barrier dump drain is also provided to allow fast dumping of unwanted data.

Specifications

Part Number CCD290-99
Sensor Type CCD
Resolution 9216 x 9232
Pixel Size 10 x 10 µm
Image Area 92.2 x 92.4 mm
Output Amp 16 x VLN
Package Buttable Silicon Carbide, 98.5 x 93.7
Total Pixels 85.08 MP
Readout Noise 4 e
Wavelength Category Visible (400-700 nm)

Relevant Applications

Ground Astronomy
Visible and infrared image sensors that set the standard for the world's leading ground-based astronomy applications and observatories
