HAWAII 4RG

IR and Visible FPAs​

The 4096×4096 pixel HAWAII-4RG™ (H4RG) is the next generation, state-of-the-art readout integrated circuit for visible and infrared instrumentation in ground-based and space telescope applications.

  • Large (4096×4096 pixel) array with either 10 µm or 15 µm pixel pitch.
  • Compatible with Teledyne Imaging Sensors (TIS)  HgCdTe infrared (IR) and silicon PIN HyViSI™ v​isible detectors, providing sensing of any spectral band from soft X-ray to 5.5 µm.
  • Substrate-removed HgCdTe enhances the J-band QE, enables response into the visible spectrum (70% QE down to 400 nm) and eliminates fluorescence from cosmic radiation absorbed in the substrate.
  • Reference rows and columns for common-mode noise rejection.
  • Guide window output – windowing with simultaneous science date acquisition of full array. Programmable window which may be read out at up to 5 MHz pixel rate for guiding. Readout is designed to allow interleaved readout of the guide window and the full frame science data.
  • Selectable number of outputs (1, 4, 16, 32 or 64) and user-selectable scan directions provide complete flexibility in data acquisition.
  • Built with modularity in mind – the array is 4-side-buttable to allow assembly of large mosaics of 4096×4096 H4RG modules.
  • Fully compatible with the TIS SIDECAR™ ASIC Focal Plane Electronics

Published Information – Cleared for Public Release by the DoD’s Office of Security Review (Case #12-S-1869).

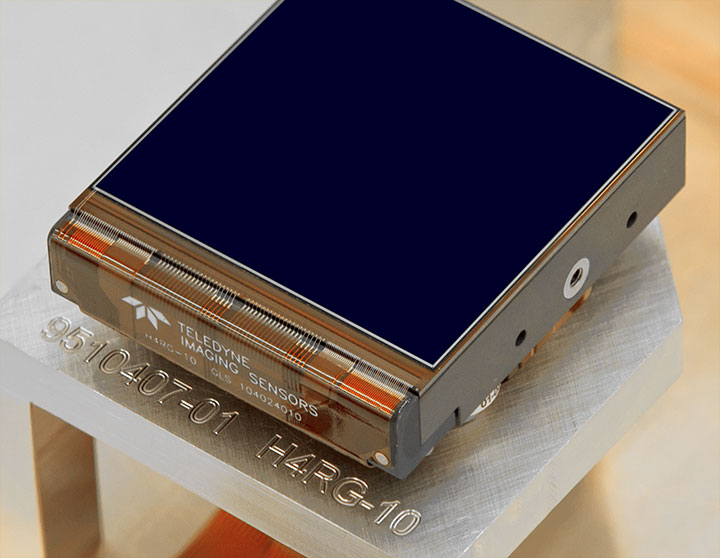

HAWAII-4RG HAWAII-4RG cooled visible-MWIR Focal Plane Arrray

Variants

Click column headings to sort
Part Number Resolution Pixel Size Image Area
HAWAII 4RG-15

  • 16.8 MP
  • Visible (400-700 nm)
    Near Infrared (700-1000 nm)
    Short-Wave Infrared (1000-3000 nm)
    Medium-Wave Infrared (3000-5000 nm)
4096 x 4096 15 x 15 µm 61 x 61 mm
HAWAII 4RG-10

  • 16.8 MP
  • Visible (400-700 nm)
    Near Infrared (700-1000 nm)
    Short-Wave Infrared (1000-3000 nm)
    Medium-Wave Infrared (3000-5000 nm)
4096 x 4096 10 x 10 µm 41 x 41 mm

Relevant Applications

Space Astronomy & Space Science
Imaging technology for orbiting telescopes, observatories, and the study of the universe
Ground Astronomy
Visible and infrared image sensors that set the standard for the world's leading ground-based astronomy applications and observatories
