Custom CMOS Sensors

Teledyne Imaging is a leading provider of custom image sensors for performance critical space science, Earth observation and ground astronomy applications. We collaborate closely with our partners and customers, taking full responsibility for the entire supply chain, from design, including a variety of package options, to delivery. We offer back thinned, COTS+ and space qualified CMOS image sensors, with unparalleled performance in terms of sensitivity, radiation tolerance and low power consumption.

Our CMOS image sensors capabilities include:

  • Proven CMOS pixel designs
  • Very large pixel sizes with low lag
  • Snap shot pixels
  • High dynamic range
  • Very low noise analogue and digital outputs
  • Radiation hard design blocks
  • Optimised for visible/NIR or for use in EUV/UV, thanks to Teledyne e2v’s back-thinning technology
  • COTS+, tailored qualification and space qualification

Mission Heritage

Agency Mission Instrument
EUMETSAT Meteosat Third Generation

MTG satellites - CIS111

ASIAA Transneptunian Automated Occultation Survey (TAOS II) CIS113
European Southern Observatory (ESO) Detector for prototype controller for the Adaptive Optics imager on the Extremely Large Telescope (ELT)

Natural Guide Star Detector (NGSD) - CIS112

ESA JUICE - JUpiter ICy moons Explorer

JANUS - CIS115

EUMETSAT EUMETSAT Polar System

2nd Generation   -   METimage - CIS116

EUMETSAT MetOp SG Generation

CIS119

The ELT (Extremely Large Telescope) Large Visible Sensor Module (LVSM) adaptive optics wavefront sensors

CIS124



Variants

Click column headings to sort
Part Number Resolution Pixel Size Package
CIS111

  • 0.1 MP
  • Ultraviolet (193-400 nm)
    Visible (400-700 nm)
    Near Infrared (700-1000 nm)
244 x 488 70 x 70 µm Custom
CIS113

  • 8.8 MP
  • Ultraviolet (193-400 nm)
    Visible (400-700 nm)
    Near Infrared (700-1000 nm)
1920 x 4608 16 x 16 µm Metal 3-side butting + 76-pin PGA on invar block
CIS115

  • 3 MP
2000 x 1504 7 x 7 µm Custom ceramic 140-pin PGA

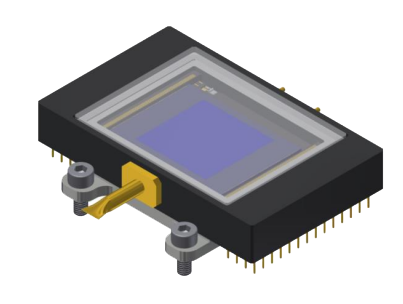

CIS124

  • 0.6 MP
  • Ultraviolet (193-400 nm)
    Visible (400-700 nm)
    Near Infrared (700-1000 nm)
800 x 800 24 x 24 µm Peltier cooled / Thermo Electric Coloed (TEC) + PGA
CIS112

  • 0.7 MP
  • Ultraviolet (193-400 nm)
    Visible (400-700 nm)
    Near Infrared (700-1000 nm)
880 x 840 24 x 24 µm Custom
CIS116

  • Ultraviolet (193-400 nm)
    Visible (400-700 nm)
    Near Infrared (700-1000 nm)
0 x 0 250 x 250 µm
CIS119

  • 0 MP
  • Ultraviolet (193-400 nm)
    Visible (400-700 nm)
    Near Infrared (700-1000 nm)
1000 x 40 250 x 250 µm Custom

Relevant Applications

New Space
COTS+ imaging sensor solutions tailored for cubesats and more
Earth Observation Imaging and Living Planet Sciences
Earth observation for resource, disaster and ocean monitoring and land mapping
Space Astronomy & Space Science
Imaging technology for orbiting telescopes, observatories, and the study of the universe
Planetary Exploration
Mission critical image sensor solutions for planetary orbiters and rovers
Defense and Security
Standard, custom and COTS+ military specification imaging solutions for sea, land, air and space domains
Ground Astronomy
Visible and infrared image sensors that set the standard for the world's leading ground-based astronomy applications and observatories

Downloads

Datasheets
Document Type
CIS113 Datasheet PDF
CIS115 Datasheet PDF
