CCD261-84

This device is primarily a full-frame sensor with an image area of 2048 x 4104 pixels; dual connections are provided for the option of frame-transfer operation if desired. Back illumination technology, in combination with an extremely low noise amplifier, makes the device well suited to the most demanding applications, such as astronomy.

Specifications

Part Number CCD261-84
Sensor Type CCD
Resolution 2048 x 4104
Pixel Size 15 x 15 µm
Image Area 30.7 x 61.6 mm
Output Amp 2 x VLN

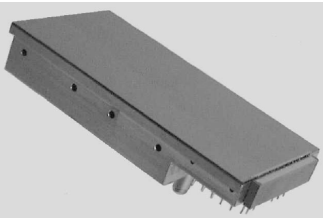

Package Buttable Invar metal Pakage with PGA connector, 31.8 x 66.4
Total Pixels 8.4 MP
Operation Full frame BI Scentific Sensor
Readout Noise 2.8 e
Wavelength Category Visible (400-700 nm)
Near Infrared (700-1000 nm)

Relevant Applications

Ground Astronomy
Visible and infrared image sensors that set the standard for the world's leading ground-based astronomy applications and observatories
