This device is based on the CCD42 and CCD44 family of scientific CCD Sensors. The CCD203 has been designed to provide a large image area for demanding astronomical and other scientific imaging applications. The back-illuminated spectral response combined with very low read-out noise give exceptional sensitivity. The device has been designed for applications such as low-noise spectroscopy and broadband photometric imaging.

Space Agency Mission Instrument
Solar Dynamics Observatory (SDO)             Solar Dynamics Observatory (SDO) Atmospheric Imaging Assembly (AIA)

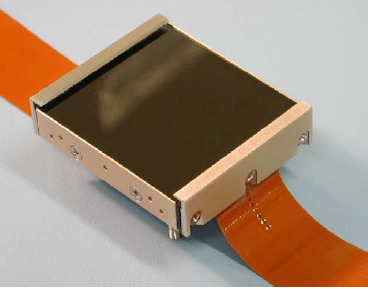

Part Number CCD203-82
Sensor Type CCD
Resolution 4096 x 4096
Pixel Size 12 x 12 µm
Package Metal pack with flexi's
Total Pixels 16.78 MP
Wavelength Category Ultraviolet (193-400 nm)
Visible (400-700 nm)
